HorseIR memory management

Ongoing ...

Introduction

Compared with a pure programming language, a database system considers more about resource allocation in the purpose of improving its throughput. For an In-Memory Database system (IMDB), the memory management plays a crucial role in its holistic system design.

In HorseIR, there is a rich set of data types (see types). Each type requires various bytes. From a programming language point of view, the "pay as you go" scheme is popular because programmers are responsible to choose proper data structures and algorithms to reduce the overhead in utilizing allocated memory.

We design an efficient memory system with a flexible scheme to allocate and deallocate memory for HorseIR runtime execution. We implement a classic buddy system which is grabage collector free. For instance, if a request with 25 bytes is received, the system will allocate 32 bytes instead of exact 25 bytes. Moreover, the coalescing nature of the buddy system could allocate and deallocate memory efficiently.

Buddy system

Initialization

A initial block is created for initializing systems, including a symbol pool.

Allocation

When a request is received, our system tries to find a "just fit" block for it. It may result in allocating a big memory chunk for a relatively small request (e.g. request 33, and return 64).

Deallocation

When a block should be deallocated, our system checks its adjacent block. If both are free, they could be coalesced in a larger block. This operation could do recursively until one side is occupied.

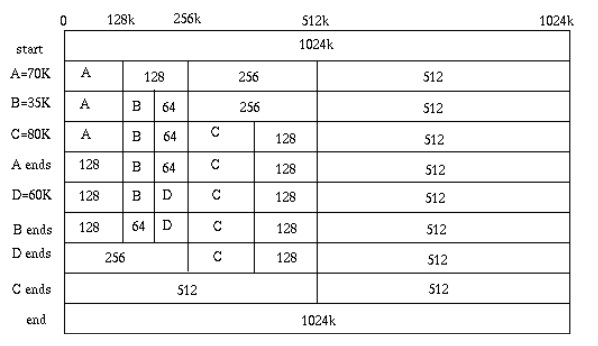

An example

Buddy system demo

Copy-on-write

When passing parameters to a UDF (User-Defined Functions) in HorseIR, it follows the pass-by-value semantics. A parameter in HorseIR may be a vector or a list of vectors. It will not be efficient if data has to be copied to UDFs in each method invocation. Therefore, the strategy "copy-on-write" is important for avoiding unncessary copies.

Technical details

Reference count

A leading slot in the allocated memory stores a counter to get the reference count of the memory block.

Here is a simple example to explain how reference count works.

1. A -> M0, ref 1   // allocate M0 to A, initialize reference count to 1
2. B -> A , ref 2   // B points to A, ref(M0) = 2
3. <Update B>       // replicate M0 to M1
4. <Update ref>     // update ref(M0) = 1, ref(M1) = 1

When a reference count goes to zero, it means that the corresponding memory block is not used anymore and it should be freed in some way.

Data compression

Two kinds of data compression

• Bit-vector
• Encoding

Bit-vector

In a boolean type, there are only two states: true and false. Since byte is the smallest unit for resource allocation, it is convenient to use one byte to represent the boolean type. On the other hand, one byte consists of 8 bits. One bit is sufficient to store the boolean information: 0 (false) and 1 (true). It is obvious that using bits could save the required space. Moreover, it is much faster in using bit-based operations than normal operators.

However, implementing bit-vector may significantly increase the complexity of the system. It is necessary to perform bit fetching and updating before the real bit values are manipulated.

Encoding

In a table with a large number of rows, if only a few rows are selected, the overhead of operating on row columns is non-trivial. Inspired by sparse techniques, we consider data transformation to make a dense vector.

Steps

1. Calculate selectivity in the first operation on a table column
2. If the selectivity is lower than a threshold (e.g. 1/64), goto step 4
3. Perform normal operations, goto step 5
4. Encode vectors and pass encoding types
5. Get the result of computation

Ripple effect

An encoding type can be propagated through valid operations implicitly. For example,

x:i64 = ... ;        // an encoding i64 type
y:i64 = @plus(x, 1); // y has the same type as x

Hence, built-in functions should support encoding types as well. There is probably a need to convert an encoding type to a normal type. In a table, if system memory is sufficient, the column with the encoding type should be expanded to a regular column so that the performance of queries can be improved.

Compressed format

From the bit-vector section, we know that bits could save at most 8x space. When many zeros are found, we intend to store non-zero elements. A basic approach is to remember the location of non-zero elements, such as:

  0 0 1 0 0 1 0 ... 0  // only 2 non-zeros
> 2 5                  // store indices

We think 0.015625 (or 1/64) is a reasonable threshold for saving indices instead of using bit vectors. One index needs 8 bytes and one byte has 8 bits. Therefore, at least 64 bits for one non-zero element are necessary for using the compressed format.

More intuitively, we can see the example below.

  x:bool = @gt(salary, 100000);

We try to find all recores whose salary is greater than 100K. Presumably, there are 1 thousand records. If there are less than 16 records satisfy the selection criteria, we would like to change the value of x to a compressed format.
