Object-Oriented Design & Patterns

Cay S. Horstmann

Chapter 1

A Crash Course in Java

Chapter Topics

• Hello, World  in Java

• Documentation Comments
• Primitive Types
• Control Flow Statements
• Object References
• Parameter Passing
• Packages
• Basic Exception Handling
• Strings
• Reading Input
• Array Lists and Linked Lists
• Arrays

• Static Fields and Methods
• Programming Style

"Hello, World" in Java

• Simple but typical class


  Ch1/helloworld/Greeter.java

• Features:

  • Constructor Greeter(String aName)
  • Method sayHello()
  • Instance field name

• Each feature is tagged public or private

"Hello, World" in Java

• Construct new objects with new operator
  new Greeter("World")
• Can invoke method on newly constructed object
  new Greeter("World").sayHello()
• More common: store object reference in object variable
  Greeter worldGreeter = new Greeter("World");
• Then invoke method on variable:
  String greeting = worldGreeter.sayHello();

"Hello, World" in Java

• Construct separate class to test your class


  Ch1/helloworld/GreeterTest.java

• main method is called when program starts
• main is static: it doesn't operate on any objects
• There are no objects yet when main starts
• In OO program, main constructs objects and invokes methods


Using the SDK

• Create a new directory to hold your files
• Use a text editor to prepare files (Greeter.java, GreeterTest.java)
• Open a shell window
• cd to directory that holds your files
• Compile and run
  javac GreeterTest.java
java GreeterTest
Note that Greeter.java is automatically compiled.

• Output is shown in shell window

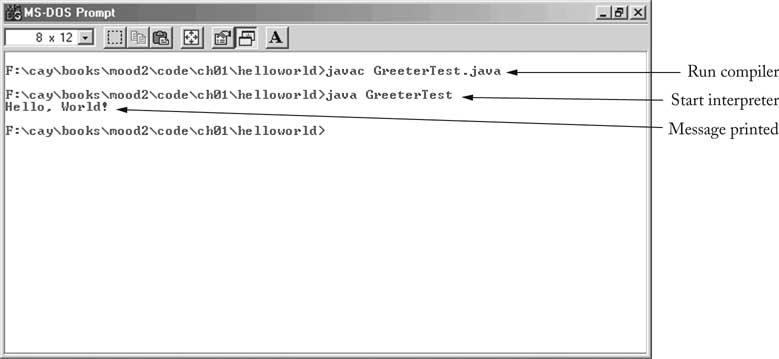

Using the SDK

Using BlueJ

• Download BlueJ from http://www.bluej.org

• No test program required
• Select Project->New and supply directory name
• Click on New Class... and type in Greeter class
• Compile the class
• Right-click the class to construct an object
• Right-click the object to invoke a method

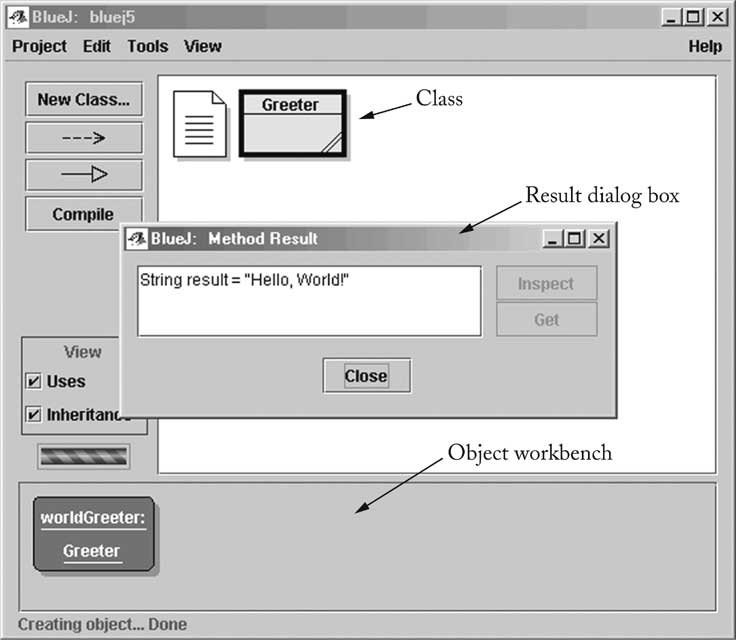

Using BlueJ

Documentation Comments

• Delimited by /** ... */
• First sentence = summary
• @param parameter explanation
• @return explanation
• Javadoc utility extracts HTML file

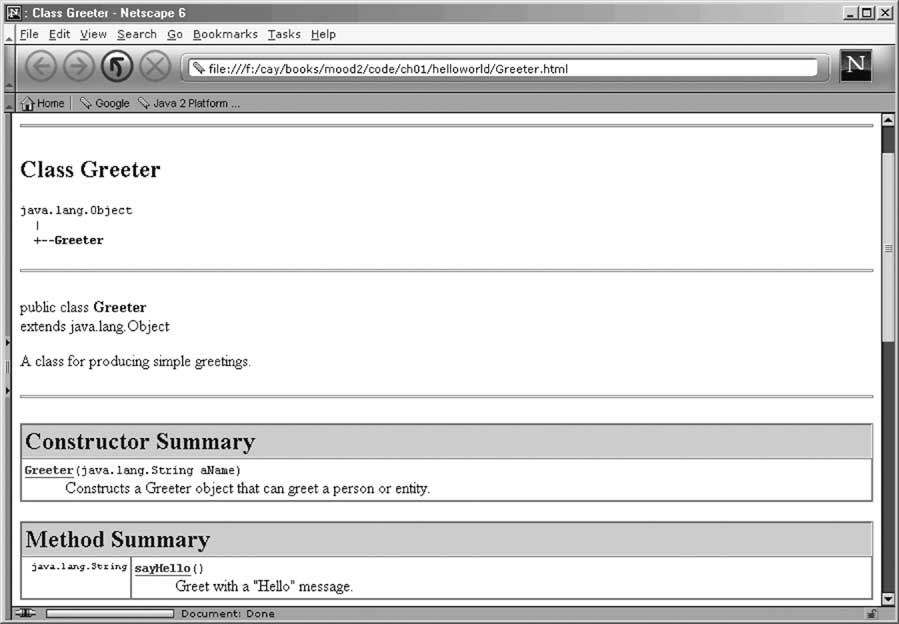

Documentation Comments - Summary

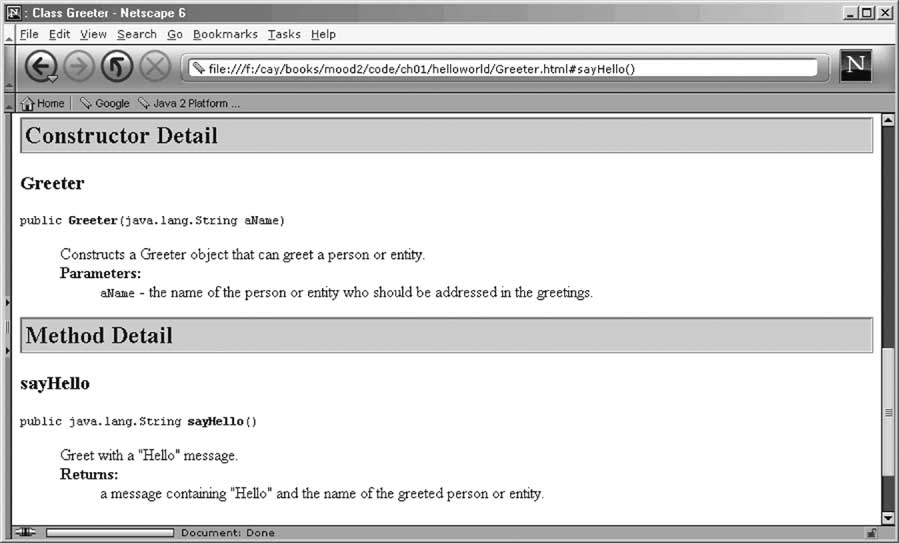

Documentation Comments - Detail

Documentation Comments

• Easy to keep documentation in sync with code
• You must document all classes and methods
• The pros do it--check out the API docs
• Install and bookmark the API docs now!

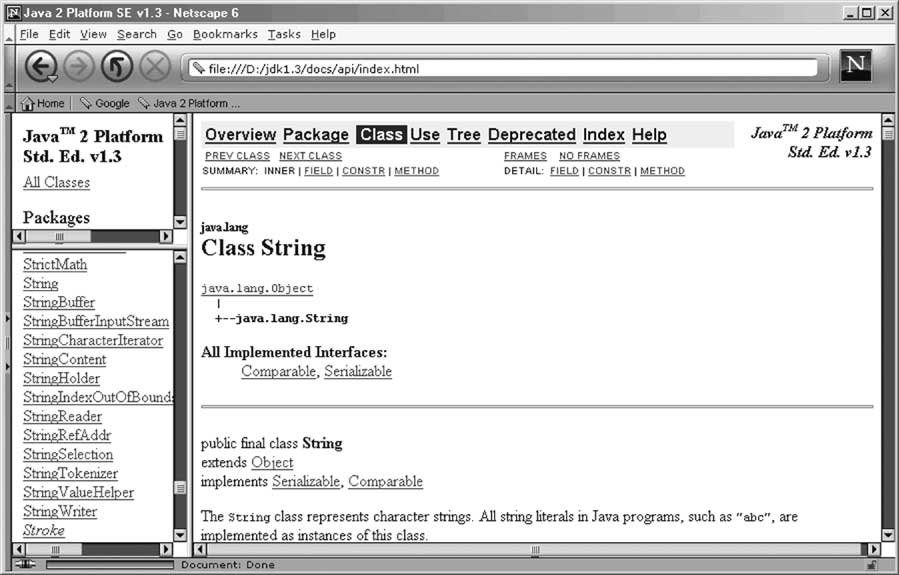

Documentation Comments - API Docs

Primitive Types

• 8 primitive types
• int, long, short, byte
• double, float

• char
• boolean
• suffixes L = long, F = float
• character constants 'a', '\n', '\x2122'
• Casts (int) x, (float) x
• Math class has methods that operate on numbers:
  y = Math.sqrt(x);


Control Flow

• if
• while
• do/while
• for
• Variable can be declared in for loop:


  for (int i = 1; i <= n; i++)
  { . . .
  }
  // i no longer defined here



Object References

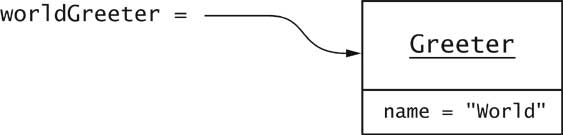

• Object variable holds a reference
  Greeter worldGreeter = new Greeter("World");

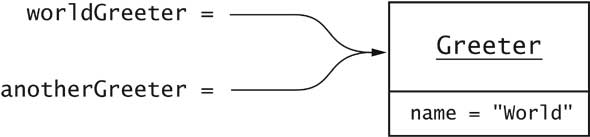

• Can have multiple references to the same object
  Greeter anotherGreeter = worldGreeter;




• After applying mutator method, all references access modified object
  anotherGreeter.setName("Dave");
// now worldGreeter.sayHello() returns "Hello, Dave!"

The null Reference

• null refers to no object
• Can assign null to object variable:
  worldGreeter = null;
• Can test whether reference is null
  if (worldGreeter == null) . . .
• Dereferencing null causes NullPointerException

The this Reference

• Refers to implicit parameter of method call
• Example: Equality testing
  public boolean equals(Greeter other)
{
   if (this == other) return true;
   return name.equals(other.name);
}
• Example: Constructor
  public Greeter(String name)
{
   this.name = name;
}

Parameter Passing

• Java uses "call by value":
  Method receives copy of parameter value

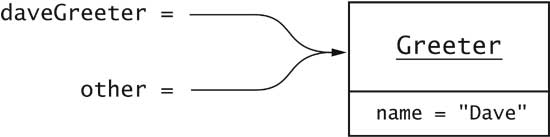

• Copy of object reference lets method modify object
  public void copyNameTo(Greeter other)
{
    other.name = this.name;
}
• Greeter worldGreeter = new Greeter("World");
Greeter daveGreeter = new Greeter("Dave");
worldGreeter.copyNameTo(daveGreeter);



No Reference Parameters

• Java has no "call by reference"
• public void copyLengthTo(int n)
{
    n = name.length();
}
public void copyGreeterTo(Greeter other)
{
    other = new Greeter(name);
}
• Neither call has any effect after the method returns
  int length = 0;
worldGreeter.copyLengthTo(length); // length still 0
worldGreeter.copyGreeterTo(daveGreeter) // daveGreeter unchanged


Packages

• Classes are grouped into packages
• Package names are dot-separated identifier sequences
  java.util
javax.swing
com.sun.misc
edu.sjsu.cs.cs151.alice
• Unique package names: start with reverse domain name

Packages

• Add package statement to top of file
  package edu.sjsu.cs.cs151.alice;
public class Greeter { . . . }
• Class without package name is in "default package"
• Full name of class = package name + class name
  java.util.ArrayList
javax.swing.JOptionPane

Importing Packages

• Tedious to use full class names
• import allows you to use short class name
  import java.util.ArrayList;
. . .
ArrayList a; // i.e. java.util.ArrayList
• Can import all classes from a package
  import java.util.*;

Importing Packages

• Cannot import from multiple packages
  import java.*.*; // NO

• If a class occurs in two imported packages, import is no help.
  import java.util.*;
import java.sql.*;
. . .
java.util.Date d; // Date also occurs in java.sql
• Never need to import java.lang.

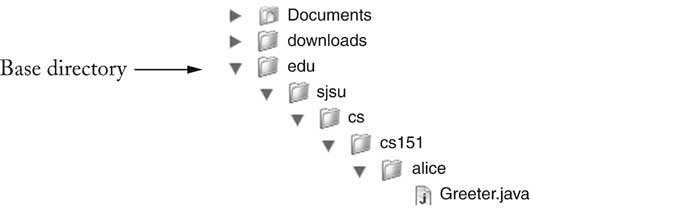

Packages and Directories

• Package name must match subdirectory name.
  edu.sjsu.cs.sjsu.cs151.alice.Greeter
must be in subdirectory
  basedirectory/edu/sjsu/cs/sjsu/cs151/alice


• Always compile from the base directory
  javac edu/sjsu/cs/sjsu/cs151/alice/Greeter.java
or
  javac edu\sjsu\cs\sjsu\cs151\alice\Greeter.java
• Always run from the base directory
  java edu.sjsu.cs.cs151.alice.GreeterTest


Exception Handling

• Example: NullPointerException
  String name = null;
int n = name.length(); // ERROR
• Cannot apply a method to null
• Virtual machine throws exception
• Unless there is a handler, program exits with stack trace
  Exception in thread "main" java.lang.NullPointerException
at Greeter.sayHello(Greeter.java:25)
at GreeterTest.main(GreeterTest.java:6)

Checked and Unchecked Exceptions

• Compiler tracks only checked exceptions
• NullPointerException is not checked
• IOException is checked
• Generally, checked exceptions are thrown for reasons beyond the programmer's control
• Two approaches for dealing with checked exceptions

  • Declare the exception in the method header (preferred)
  • Catch the exception

Declaring Checked Exceptions

• Example: Opening a file may throw FileNotFoundException:


  public void read(String filename) throws FileNotFoundException{
    FileReader reader = new FileReader(filename);
    ...
  }


• Can declare multiple exceptions



  public void read(String filename)
     throws IOException, ClassNotFoundException

  public static void main(String[] args)
     throws IOException, ClassNotFoundException



Catching Exceptions

• try
    { code that might throw an IOException
    }
  catch (IOException exception)
    { take corrective action
    }


• Corrective action can be:

  • Notify user of error and offer to read another file
  • Log error in error report file
  • In student programs: print stack trace and exit
    exception.printStackTrace();
System.exit(1);

The finally Clause

• Cleanup needs to occur during normal and exceptional processing
• Example: Close a file



  FileReader reader = null;
  try
    {
      reader = new FileReader(name);
      ...
    }
  finally
    {
      if (reader != null) reader.close();
    }



Strings

• Sequence of Unicode characters
• length method yields number of characters
• "" is the empty string of length 0, different from null
• charAt method yields characters:
  char c = s.charAt(i);

Strings

• substring method yields substrings:
  "Hello".substring(1, 3) is "el"


• Use equals to compare strings
  if (greeting.equals("Hello"))
• == only tests whether the object references are identical:
  if ("Hello".substring(1, 3) == "el") ... // NO!

StringTokenizer

• Use StringTokenizer to break string into substrings



  String countries = "Germany,France,Italy";
  StringTokenizer tokenizer = new StringTokenizer(countries, ",");
  while (tokenizer.hasMoreTokens())
    {
       String country = tokenizer.nextToken();
       ...
    }



String concatenation

• + operator concatenates strings:
  "Hello, " + name
• If one argument of + is a string, the other is converted into a string:
  int n = 7;
String greeting = "Hello, " + n;
// yields "Hello, 7"

• toString method is applied to objects
  Date now = new Date();
String greeting = "Hello, " + now;
// concatenates now.toString()
// yields "Hello, Wed Jan 17 16:57:18 PST 2001"

Converting Strings to Numbers

• Use static methods
  Integer.parseInt
  Double.parseDouble
• Example:
  String input = "7";
int n = Integer.parseInt(input);
// yields integer 7
• If string doesn't contain a number, throws a  NumberFormatException(unchecked)

Reading Input

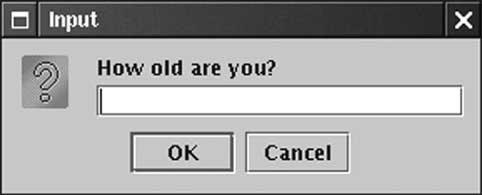

• Use input dialog:
  String input = JOptionPane.showInputDialog("How old are you?");
• If user cancels, result is null:
  if (input != null) age = Integer.parseInt(input);




Reading Input

• Must call System.exit(0)

• Ch1/input1/InputTest.java

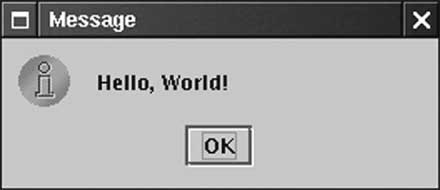

• Also have message dialog
  JOptionPane.showMessageDialog(null, "Hello, World");




Reading Input

• Read console input from System.in
• System.in is an InputStream: reads bytes
• We want a Reader that reads characters

• Turn System.in into InputStreamReader
• Also want to read entire lines
• Use BufferedReader:
  BufferedReader console = new BufferedReader(
new InputStreamReader(System.in));
System.out.println("How old are you?");
String input = console.readLine();
int age = Integer.parseInt(input);


• Ch1/input2/InputTest.java

The ArrayList class

• Collects objects of any class type
• add appends to the end
  ArrayList countries = new ArrayList();
countries.add("Belgium");
countries.add("Italy");
countries.add("Thailand");

• size method yields number of elements
  for (int i = 0; i < countries.size(); i++) . . .
• get gets an element; must cast to correct type:
  String country = (String)countries.get(i);
• set sets an element
  countries.set(1, "France");


The ArrayList class

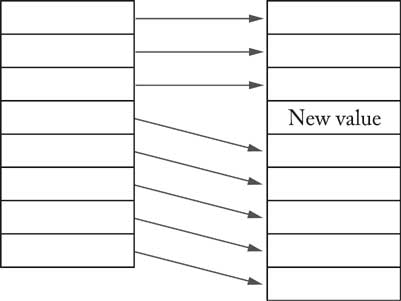

• Insert and remove elements in the middle
  countries.add(1, "Germany");
  countries.remove(0);
• Not efficient--use linked lists if needed frequently

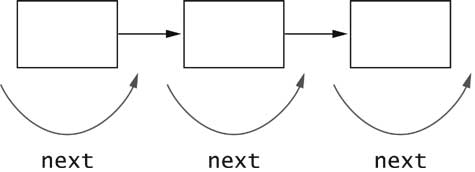

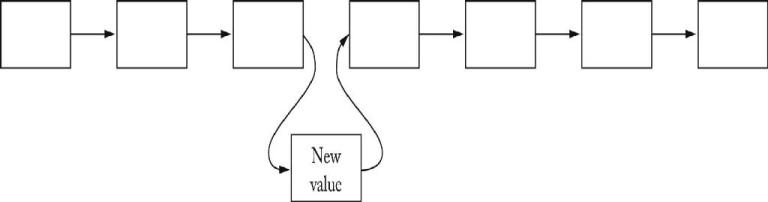

Linked Lists

• Efficient insertion and removal


• add appends to the end
  LinkedList countries = new LinkedList();
countries.add("Belgium");
countries.add("Italy");
countries.add("Thailand");
• Use iterators to edit in the middle


List Iterators

• Iterator points between list elements




• next retrieves element and advances iterator
  ListIterator iterator = countries.listIterator();
  while (iterator.hasNext())
  {
     String country = (String) iterator.next();
     . . .
  }
• add adds element before iterator position
• remove removes element returned by last call to next


Arrays

• Drawback of array lists: can't store numbers
• Arrays can store objects of any type, but their length is fixed

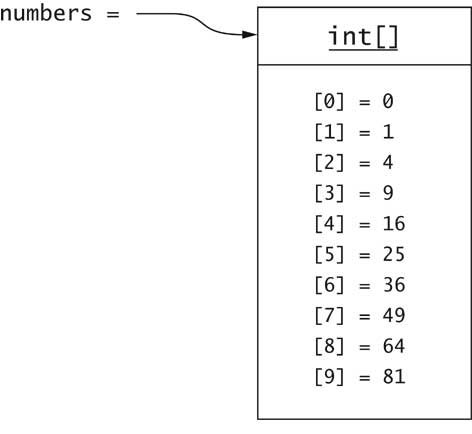

  int[] numbers = new int[10];
• Array variable is a reference



Arrays

• length member yields number of elements
  for (int i = 0; i < numbers.length; i++)

• Can have array of length 0; not the same as null:
  numbers = new int[0];
• Array access with [] operator:
  int n = numbers[i];
• Multidimensional array
  int[][] table = new int[10][20];
int t = table[i][j];


Command-Line Arguments

• void main(String[] args)

• args parameter of main is initialized with command-line arguments
• Example:
  java GreeterTest Mars

• args.length is 1
  args[0] is "Mars"

Static Fields

• Shared among all instances of a class
• Example: shared random number generator
  public class Greeter
{
. . .
    private static Random generator;
}
• Example: shared constants
  public class Math
{
. . .
    public static final double PI = 3.14159265358979323846;
}


Static Methods

• Don't operate on objects
• Example: Math.sqrt
• Example: factory method



  public static Greeter getRandomInstance()
  { if (generator.nextBoolean()) // note: generator is static field
      return new Greeter("Mars");
    else
      return new Greeter("Venus");
  }



• Invoke through class:
  Greeter g = Greeter.getRandomInstance();
• Static fields and methods should be rare in OO programs

Programming Style: Case Convention

• variables, fields and methods:
  start with lowercase, use caps for new words:
  name
sayHello
• Classes:
  start with uppercase, use caps for new words:
  Greeter
ArrayList
• Constants:
  use all caps, underscores to separate words
  PI
MAX_VALUE

Programming Style: Property Access

• Common to use get/set prefixes:
  String getName()
void setName(String newValue)
• Boolean property has is/set prefixes:
  public boolean isPolite()
public void setPolite(boolean newValue)

Programming Style: Braces

• "Allman" brace style: braces line up



  public String sayHello()
  {
    return "Hello, " + name + "!";
  }



• "Kernighan and Ritchie" brace style: saves a line



  public String sayHello() {
    return "Hello, " + name + "!";
  }



Programming Style: Fields

• Some programmers put fields before methods:



  public class Greeter
  {
     private String name;
     public Greeter(String aName) { . . . }
     . . .
  }



• From OO perspective, it is better to list the public interface first
• All fields should be private
• Don't use default (package) visibility

Programming Style: Miscellaneous

• Spaces around operators, after keywords, but not after method names
  Good: if (x > Math.sqrt(y))
Bad: if(x>Math.sqrt (y))
• Don't use C-style arrays:
  Good: int[] numbers
Bad: int numbers[]

• No magic numbers
  Good: h = HASH_MULTIPLIER * h + val[off];
Bad: h = 31 * h + val[off];
