The matlab tamer is an open-source extensible objected-oriented framework, implemented in Java. The overall goal of the system is to take Matlab programs as input and produce output which is suitable for static compilation, a process that we call Taming Matlab. Given a .m file as input, which is the entry point to a program, the Matlab Tamer produces as output: (1) a Tame IR for all functions (both user and library) which are reachable from the entry point, (2) a complete call graph, and (3) an estimation of classes/types for all variables.

There are some features in Matlab that are simply too “wild” to handle, and so our system will reject programs using those features, and the user will need to refactor their program to eliminate that feature. Thus, another important goal in our work is to define as large as possible subset of M ATLAB that can be tamed without user intervention.

Matlab includes a large set of builtin functions as part of the programming language. These have non-standard semantics, due to Matlabs type system. We provide a principled approach to dealing with all these builtin functions, and defining their behavior so that programs can be completely analyzed. Some of the research on builtins, and the specification of the builtins that are part of the Matlab tamer, can be found below.

Research on MATLAB

Our paper/technical report (see publications below) includes some research on Matlab. In the following sections we show some of the tools and little projects we used to find out about Matlabs behavior, and their full results.

MATLAB Superior/Inferior Relationships

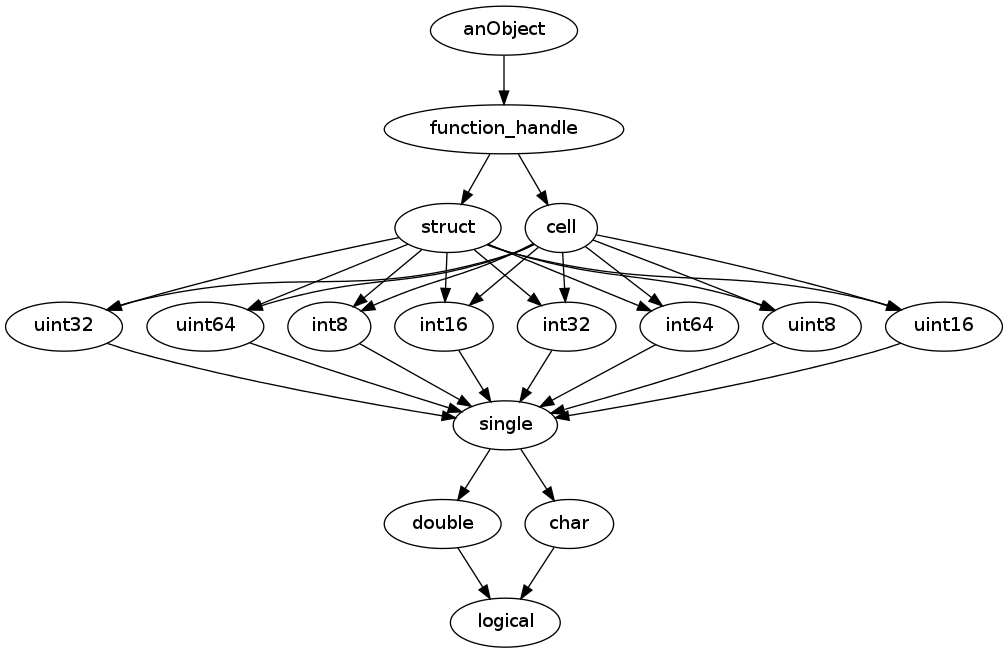

Matlab’s builtin mclasses do have precedence relationships, even if they don’t appear to be documented. In order to find precendence relationships among Matlabs builtin clases, we created a small program to that calls a function with two arguments with every combination of Matlab classes as arguments. This particular function is specialized for every Matlab class, so by finding out which implementation Matlab actually executes when calling with two arguments, we can find out whether the corresponding Matlab classes have a precedence relaitonship between them. We found the following inferior/superior relationships for Matlab classes (with transitive edges removed).

Built In Class Relationships

You can download the small project that generates the result (using python, Matlab, graphviz), here.

MATLAB Builtin Function Usage

The mcbench framework allows us to search and analyze a large set of Matlab programs. We have used it to find out about the usage of builtin functions. I.e. we used the mcbench framework to find all calls in all sample projects, with their associated frequencies (how often they were called), then used matlabs exists function to find out which ones of those are builtins. The list of all calls can be found here: calls.txt. When removing all functions that are not builtins we get the following list of relevant builtins, with their associated frequencies: builtins.txt

Semantics of Bultins with respect to MATLAB Classes

Matlabs default numerical type is double. This means that in order to get an integer, one has to explicitly cast a value to be an integer, because a constant like 3 will be a double. In Matlab, an integer value is more special than a double, so if one combines an integer and a double in an operation, the result will be an integer. Generally Matlab has non-standard semantics for its library. We created a small project that generates random values of given Matlab types, and uses them as arguments to Matlabs library functions (including operations). We then collect the Matlab types of the generated outputs. This allows us to produces tables that for given input argument Matlab classes, shows us what the result Matlab class is.

The result tables can be found here.

Rows correspond to the mclass of the left operand, columns correspond to the mclass of the right operand, and the table entries give the mclass of the result. The labels i8 to i64 represent the classes int8 through int64, u8 to u64 refer to the unsigned integers, f32 is single, f64 is double, rf32 and rf64 indicate arguments that were rounded to the nearest integer. c is char, and b is logical, h is function handle, and {} is the empty cell array.

A prefix in the reults of “M” means the result was a matrix, for scalar arguments, while prefix of “x” means the result was complex for real arguments. Entries of the form “-” indicate that this combination is not allowed and will result in a runtime error. “N/A”, “bad” means that over different tests there either errors, or inconsistent results, so no good results are available.

Builtin Framework

Our builtin framework allows the specification of Matlab builtin functions, their relationships (by defining them in a tree), and the behavior with respect to Matlab classes. More information can be found in the technical report below. In the following we have compiled the complete tree of all defined builtins, the specification used to create this tree (this specification includes comments explaining the domain-specific language used), and the domain-specific language used to specify Matlab class propgation information for builtin Functions.

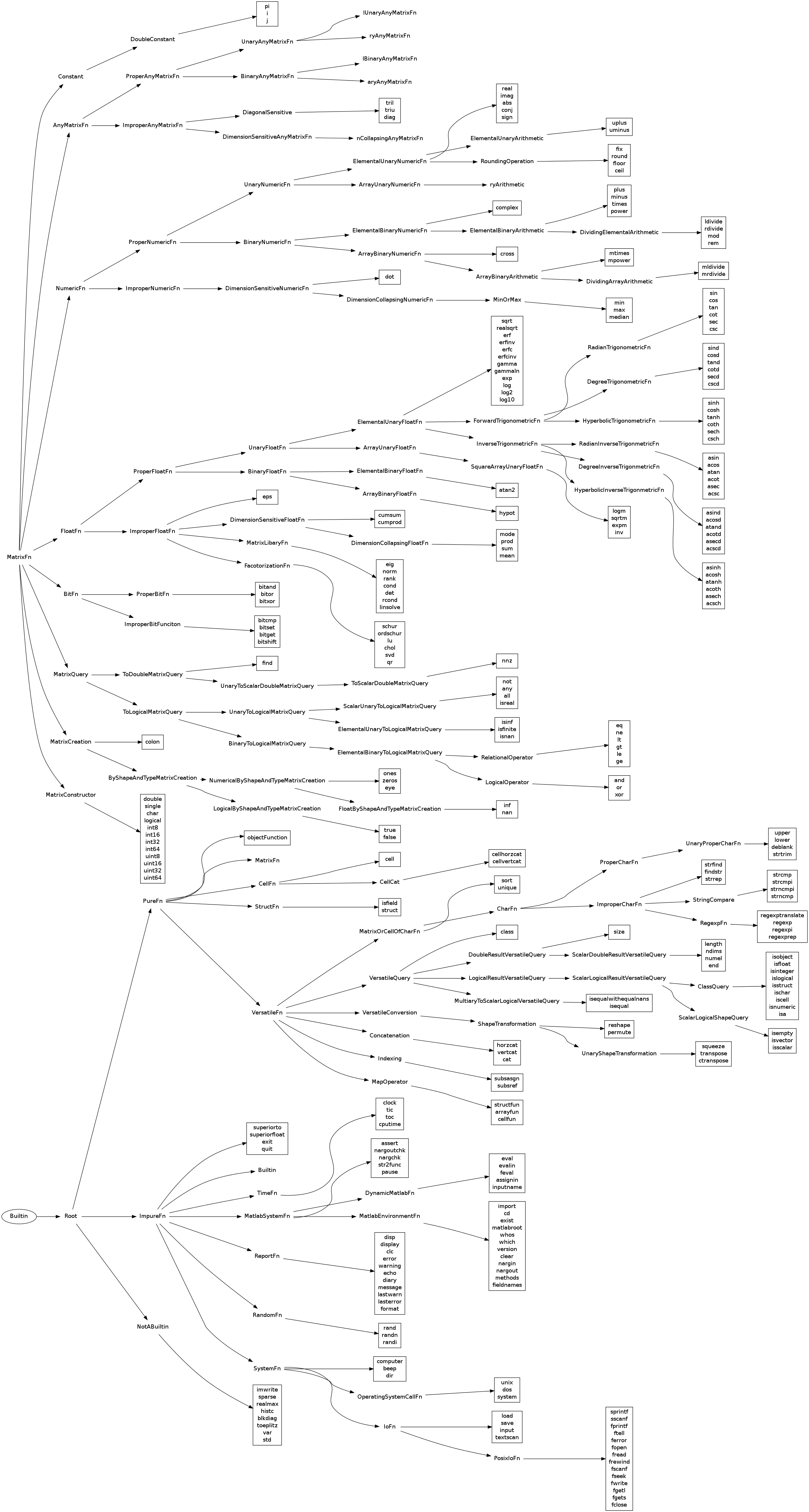

Tree of all defined builtin functions: tree.png Builtin definition file: builtins.csv Definition of domain-specific language used in the above builtin definition file to define the propagation of mclasses through builtins: ClassPropagationlanguage.txt




The MATLAB Tamer as part of McLab will be open sourced under the Apache 2.0 license. McLab maybe downloaded or cloned from our Github Repository.
